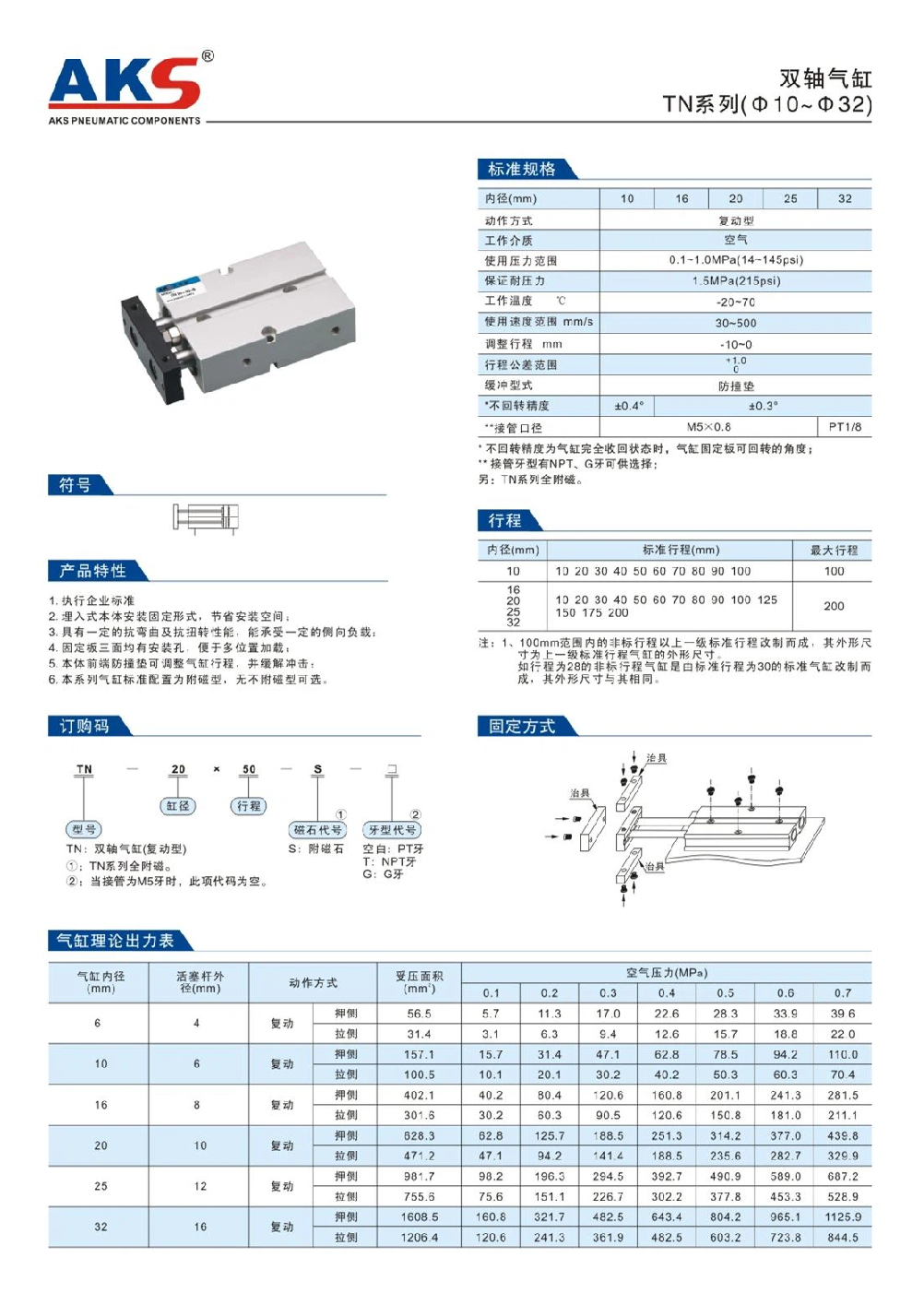

AIRTAC TYPE.

Double acting pneumatic cylinder with a 10-50 mm bore and 10-500 mm stroke. It requires an operating pressure between 0.1 – 1.0 mpa. Self-lubricating, magnetic, adjustable damping, and has an end rod thread of M4×0.7. Wide range of mounting accessories available. The cylinder has an aluminum housing and comes with a NBR sealing, it is capable of operating within a temperature range of -20 to 70°C.Speed range 30-500 mm/s.

The embedded body is installed in a fixed form, saving installation space. It has certain anti-bending and anti-torsion properties, and can withstand certain lateral loads. There are mounting holes on three sides of the fixing plate, which is convenient for multi-position loading. The front-end crash pad of the body can adjust the cylinder stroke and relieve the impact.

Pros

• It is double acting, allowing for full control of the rod.

• The grooved body allows for quick and easy sensor mounting

• The rod is self lubricating, meaning no lubricators are required in the air system. It will require little maintenance and have a long service life.

• It comes with the ability to adjust the damping, or cushioning, of the end of the rod stroke This way you can achieve perfect damping for every load situation.

Cons

• Not able to be operated in freezing environments
